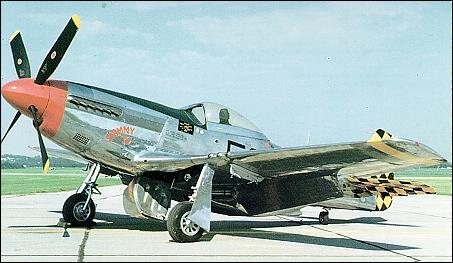

NORTH AMERICAN P-51D "MUSTANG"

The P-51 was designed as the NA-73 in 1940 at Britain's request. The design showed promise and AAF purchases of Allison-powered Mustangs began in 1941 primarily for photo recon and ground support use due to its limited high-altitude performance. But in 1942, tests of P-51s using the British Rolls-Royce "Merlin" engine revealed much improved speed and service ceiling, and in Dec. 1943, Merlin-powered P-51Bs first entered combat over Europe. Providing high-altitude escort to B-17s and B-24s, they scored heavily over German interceptors and by war's end, P-51s had destroyed 4,950 enemy aircraft in the air, more than any other fighter in Europe.

Mustangs served in nearly every combat zone, including the Pacific where they escorted B-29s to Japan from Iwo Jima. Between 1941-5, the AAF ordered 14,855 Mustangs (including A-36A dive bomber and F-6 photo recon versions), of which 7,956 were P-51Ds. During the Korean Conflict, P-51Ds were used primarily for close support of ground forces until withdrawn from combat in 1953.

SPECIFICATIONS:
Span: 37 ft. 0 in.
Length: 32 ft. 3 in.
Height: 13 ft. 8 in.
Weight: 12,100 lbs. max.
Armament: Six .50-cal. machine guns and ten 5 in. rockets or 2,000 lbs. of bombs.
Engine: Packard built Rolls-Royce "Merlin" V-1650 of 1,695 hp.
Cost: $54,000

PERFORMANCE
Maximum speed: 437 mph.
Cruising speed: 275 mph.
Range: 1,000 miles
Service Ceiling: 41,900 ft.
